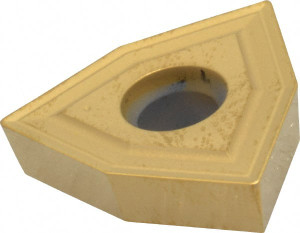

Kennametal DFT110506HD KC720 Carbide Indexable Drill Insert TiN Finish, 17.6mm Inscribed Circle, 4.93mm Thick, 0.6mm Corner Radius, 84° Trigon 1623337 - 02237873

Kennametal DFT110506HD KC720 Carbide Indexable Drill Insert TiN Finish, 17.6mm Inscribed Circle, 4.93mm Thick, 0.6mm Corner Radius, 84° Trigon 1623337 - 02237873

Brand:   Kennametal
SKU:
02237873
ID:
655808
callling
$56.78
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal DFT110506HD KC720 Carbide Indexable Drill Insert TiN Finish, 17.6mm Inscribed Circle, 4.93mm Thick, 0.6mm Corner Radius, 84° Trigon

Manufacturer Part #: 1623337

S/N: 02237873

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleDFT
Insert MaterialCarbide
Manufacturer GradeKC720
Inscribed Circle (Decimal Inch)0.6929
Inscribed Circle (mm)17.60
Corner Radius (Decimal Inch)0.0236
Corner Radius (mm)0.6
ChipbreakerHD
Material GradeC1, C5
Coating ProcessPVD
ShapeTrigon
Hole Diameter (Mm) ( - 0 Decimals)5.85
Relief Angle8
Insert Size110506
Length (Mm)11.63
Length (Decimal Inch - 4 Decimals)0.4579
Included Angle Degree84
Thickness (Decimal Inch - 4 Decimals)0.1941
Coating/FinishTiN
UNSPSC Code23242105
