igus 5/8" Inside x 23/32" Outside Diam, Thermoplastic Sleeve Bearing 15/16" Outside Diam, 0.046" Flange Thickness, 1" OAL GFI-1011-16 - 02560449

igus 5/8" Inside x 23/32" Outside Diam, Thermoplastic Sleeve Bearing 15/16" Outside Diam, 0.046" Flange Thickness, 1" OAL GFI-1011-16 - 02560449

Brand:   igus
SKU:
02560449
ID:
557382
callling
$11.40
Current Stock:
Adding to cart… The item has been added

igus

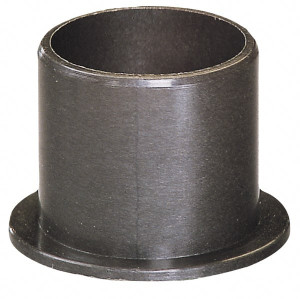

igus 5/8" Inside x 23/32" Outside Diam, Thermoplastic Sleeve Bearing 15/16" Outside Diam, 0.046" Flange Thickness, 1" OAL

Manufacturer Part #: GFI-1011-16

S/N: 02560449

UNSPSC: 31171509

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Bearing TypeSleeve
Outside Diameter (Inch)23/32
Inside Diameter (Inch)5/8
Flange Outside Diameter (Decimal Inch)0.9370
Flange Thickness (Decimal Inch)0.0460
MaterialThermoplastic
Overall Length (Inch)1
Maximum Pressure X Velocity28600psi
Bore TypePlain
Lubricant TypeSelf-Lubrication
StandardsRoHS II
SeriesG300
Material GradeG300
Temperature Range-40 to 275
Housing Bore Limits Mininum0.7184
Housing Bore Limits Maximum0.7192
