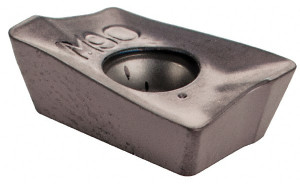

Iscar APKT1003PDR HM90 IC928 Carbide Milling Insert TiAlN Finish, 0.14" Thick x 0.264" Wide 5605179 - 03100575
Brand: Iscar- SKU:
- 03100575
- ID:
- 659977
$23.38
Iscar APKT1003PDR HM90 IC928 Carbide Milling Insert TiAlN Finish, 0.14" Thick x 0.264" Wide
Manufacturer Part #: 5605179
S/N: 03100575
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | APKT |
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.50 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1390 |
| Coating/Finish | TiAlN |
| Relief Angle | 11 |
| Maximum Depth of Cut (Decimal Inch) | 0.3860 |
| Insert Size Code | 1003 |
| Material Grade | C1, C2, C5, C6 |
| Inscribed Circle (Decimal Inch) | 0.2640 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Series | HELIMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.3960 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Ansi Code | APKT 1003PDR HM90 IC928 |
| Iso Code | APKT 1003PDR HM90 |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | APKT 1003PDR HM90 IC928 |
| Cutter Series Compatibility | HM90-10 |
| Chip Breaker | HM |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.2640 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4310 |
