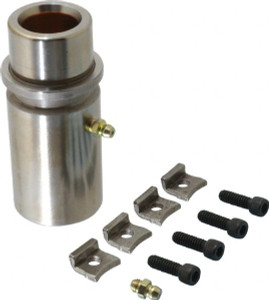

Danly 1" ID x 3-15/16" OAL, Steel, Bronze Plated Die & Mold Shoulder Bushing Extra Long Shoulder, 1.72" Bottom OD, 1-1/2" Top OD, 1.845" Collar OD, 3" Under Collar, 15/16" Above Collar 6-08-28 - 03224920

Danly 1" ID x 3-15/16" OAL, Steel, Bronze Plated Die & Mold Shoulder Bushing Extra Long Shoulder, 1.72" Bottom OD, 1-1/2" Top OD, 1.845" Collar OD, 3" Under Collar, 15/16" Above Collar 6-08-28 - 03224920

Brand:   Danly IEM
SKU:
03224920
ID:
442095
callling
$174.71
Current Stock:
Adding to cart… The item has been added

Danly IEM

Danly 1" ID x 3-15/16" OAL, Steel, Bronze Plated Die & Mold Shoulder Bushing Extra Long Shoulder, 1.72" Bottom OD, 1-1/2" Top OD, 1.845" Collar OD, 3" Under Collar, 15/16" Above Collar

Manufacturer Part #: 6-08-28

S/N: 03224920

UNSPSC: 23153000

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

MaterialSteel
Body TypeExtra-Long Shoulder
Inside Diameter (Inch)1
Inside Diameter (Decimal Inch)1.0000
Bottom Outside Diameter (Decimal Inch)1.7200
Top Outside Diameter (Fractional Inch)1-1/2
Top Outside Diameter (Decimal Inch)1.5000
Attachment MethodDemountable
Lubrication TypeNon-Self Lubricating
Bushing TypeFriction
Collar Outside Diameter (Decimal Inch)1.8450
Length Above Collar (Inch)15/16
Length Under Collar (Fractional Inch)3
Length Under Collar (Decimal Inch)3.0000
Clamp Compatibility6-90-1
FinishBronze-Plated
Bin1,1/2
C11.845
F -In--3
