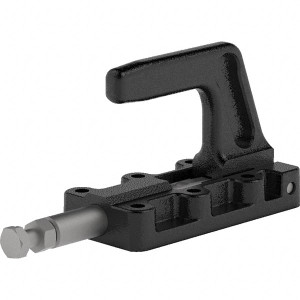

Destaco 1,100 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp 6 Mounting Holes, 0.26" Mounting Hole Diam, 0.55" Plunger Diam, Straight Handle 95040 - 03860038
Brand: Destaco- SKU:
- 03860038
- ID:
- 441832
$256.67
Destaco 1,100 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp 6 Mounting Holes, 0.26" Mounting Hole Diam, 0.55" Plunger Diam, Straight Handle
Manufacturer Part #: 95040
S/N: 03860038
UNSPSC: 27112100
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Load Capacity (Lb. - 3 Decimals) | 1100.00 |
| Load Capacity (N) | 4893.04 |
| Load Capacity | 4893.04N, 1100lb |
| Plunger Travel (Decimal Inch) | 1.5000 |
| Plunger Travel | 1.5in, 38.1mm |
| Plunger Travel (mm) | 38.10 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | M8x1.25 |
| Plunger Centerline Height (mm) | 9.91 |
| Plunger Centerline Height (Decimal Inch) | 0.3900 |
| Plunger Centerline Height | 0.39in, 9.91mm |
| Plunger Diameter (mm) | 13.97 |
| Plunger Diameter (Decimal Inch) | 0.5500 |
| Base Style | Flanged |
| Handle Style | Straight |
| Clamp Material | Carbon Steel |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 5.8700 |
| Overall Length (mm) | 149.10 |
| Overall Height (Mm - 5 Decimals) | 76.96 |
| Overall Height (Decimal Inch) | 3.0300 |
| Base Length (mm) | 110.49 |
| Base Length (Decimal Inch) | 4.3500 |
| Base Width (Inch) | 2.0000 |
| Base Width | 50.80 |
| Handle Color | Black |
| Length Distance Between Mount Holes (mm) | 35.00 |
| Length Distance Between Mount Holes (Inch) | 1.3800 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.3800 |
| Width Distance Between Mount Holes (mm) | 35.05 |
| Mounting Hole Diameter (mm) | 6.60 |
| Industry Number | 95040 |
| UNSPSC Code | 27112100 |
| Front Of Base To Tip Of Toggle Bar | 1.5000 |
| Number Of Mounting Holes | 6 |
