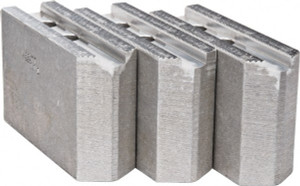

Abbott Workholding 10" & Up Chuck Capacity, 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw 3 Jaws, Aluminum, 1.1811" Btw Mount Hole Ctrs, 4-1/2" Long x 1-1/2" Wide x 3" High, 0.6299" Groove, 0.4724" & 12mm Fastener KTT10A1 - 04230660
Brand: Abbott Workholding- SKU:
- 04230660
- ID:
- 449957
$112.45
Abbott Workholding 10" & Up Chuck Capacity, 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw 3 Jaws, Aluminum, 1.1811" Btw Mount Hole Ctrs, 4-1/2" Long x 1-1/2" Wide x 3" High, 0.6299" Groove, 0.4724" & 12mm Fastener
Manufacturer Part #: KTT10A1
S/N: 04230660
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Jaw Shape | Square |
| Jaw Interface Type | Serrated |
| Material | Aluminum |
| Maximum Compatible Chuck Diameter (mm) | 10.00 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 10.0000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1811 |
| Distance Between Mount Hole Centers (mm) | 30.00 |
| Fastener Size (mm) | 12.00 |
| Fastener Size (Decimal Inch) | 0.4724 |
| Slot Width (Decimal Inch) | 0.6300 |
| Groove Width (mm) | 16.00 |
| Groove Width (Decimal Inch) | 0.6299 |
| Overall Height (Decimal Inch) | 3.0000 |
| Overall Height (Mm - 5 Decimals) | 76.20 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Material Grade | 6061-T6 |
| Overall Width/Diameter (Decimal Inch) | 1.5000 |
| Overall Width/Diameter (Inch) | 1-1/2 |
| Number Of Jaws | 3 |
