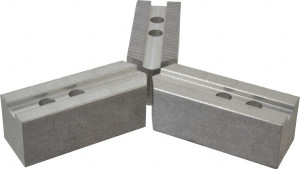

Abbott Workholding 12" & Up Chuck Capacity, 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw 3 Jaws, Aluminum, 1.1811" Btw Mount Hole Ctrs, 5-1/2" Long x 2" Wide x 2" High, 0.7087" Groove, 0.5512" & 14mm Fastener KTT12A - 04230710
Brand: Abbott Workholding- SKU:
- 04230710
- ID:
- 449962
$118.42
Abbott Workholding 12" & Up Chuck Capacity, 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw 3 Jaws, Aluminum, 1.1811" Btw Mount Hole Ctrs, 5-1/2" Long x 2" Wide x 2" High, 0.7087" Groove, 0.5512" & 14mm Fastener
Manufacturer Part #: KTT12A
S/N: 04230710
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Jaw Shape | Square |
| Jaw Interface Type | Serrated |
| Material | Aluminum |
| Maximum Compatible Chuck Diameter (mm) | 12.00 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 12.0000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1811 |
| Distance Between Mount Hole Centers (mm) | 30.00 |
| Fastener Size (mm) | 14.00 |
| Fastener Size (Decimal Inch) | 0.5512 |
| Slot Width (Decimal Inch) | 0.7090 |
| Groove Width (mm) | 18.00 |
| Groove Width (Decimal Inch) | 0.7087 |
| Overall Height (Decimal Inch) | 2.0000 |
| Overall Height (Mm - 5 Decimals) | 50.80 |
| Overall Length (Inch) | 5-1/2 |
| Overall Length (Decimal Inch) | 5.5000 |
| Material Grade | 6061-T6 |
| Overall Width/Diameter (Decimal Inch) | 2.0000 |
| Overall Width/Diameter (Inch) | 2 |
| Number Of Jaws | 3 |
