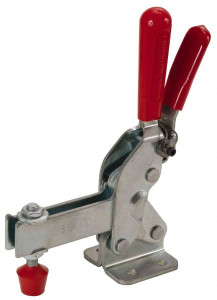

Destaco 1,000 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 64° Handle Movement, 76° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel 2007-UR - 05572318
Brand: Destaco- SKU:
- 05572318
- ID:
- 441373
$79.63
Destaco 1,000 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 64° Handle Movement, 76° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Carbon Steel
Manufacturer Part #: 2007-UR
S/N: 05572318
UNSPSC: 31162902
UPC: 697437519054
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Vertical | ||
| Bar Style | U-Bar | ||
| Base Style | Flanged | ||
| Bar End Type | Fixed Spindle | ||
| Holding Capacity (N) | 4450.00 | ||
| Holding Capacity (Lb.) | 1000.00 | ||
| Length Distance Between Mount Holes (mm) | 19.05 | ||
| Length Distance Between Mount Holes | 0.75in, 19.05mm | ||
| Length Distance Between Mount Holes (Inch) | 0.75 | ||
| Width Distance Between Mount Holes (mm) | 31.75 | ||
| Width Distance Between Mount Holes | 1.25in, 31.75mm | ||
| Width Distance Between Mount Holes (Decimal Inch) | 1.2500 | ||
| Height Under Bar (Decimal Inch) | 1.2500 | ||
| Height Under Bar (mm) | 31.75 | ||
| Overall Length (mm) | 167.64 | ||
| Overall Length (Decimal Inch) | 6.6000 | ||
| Overall Height (Decimal Inch) | 7.1700 | ||
| Overall Height (Mm - 5 Decimals) | 182.12 | ||
| Base Length (mm) | 49.28 | ||
| Base Width (Inch) | 1.9400 | ||
| Base Width | 49.28 | ||
| Handle Style | Straight | ||
| Material | Carbon Steel | ||
| Handle Material | Carbon Steel | ||
| Handle Color | Red | ||
| Mounting Hole Diameter (mm) | 7.11 | ||
| Mounting Hole Diameter (Decimal Inch) | 0.2800 | ||
| Bar Opening (Degrees) | 76 | ||
| Handle Movement (Degrees) | 64 | ||
| Maximum Mechanical Advantage | 10 | 01, 5.3 | 1 |
| Spindle Thread Size | M8x1.25 | ||
| Spindle Length (mm) | 60.00 | ||
| Bar Width (Inch) | 3/4 | ||
| Bar Width (mm) | 19.05 | ||
| Bar Width (Decimal Inch) | 0.7500 | ||
| Bar Thickness (mm) | 3.05 | ||
| UNSPSC Code | 31162902 | ||
| Bar Thickness (Decimal Inch) | 0.1200 | ||
| Handle Width (mm) | 31.75 | ||
| Handle Width (Decimal Inch) | 1.2500 | ||
| Front Of Base To Toggle Tip | 2.88in | ||
| Includes | (2) Nuts, Hex Head Spindle | ||
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.8800 | ||
| Front of Base To Tip Of Toggle Bar (mm) | 73.15 | ||
| Industry Number | 2007-UR | ||
| Number Of Mounting Holes | 6 | ||
| Finish Coating | Zinc |
