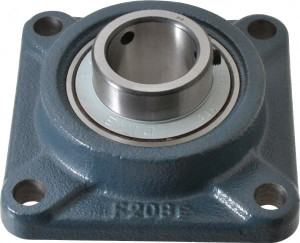

Value Collection 1-1/2" ID, 5-1/8" OAW x 5-1/8" OAL x 5-1/8" OAH 4-Bolt High Temperature Flange Bearing 4,000 Lb Static Cap, 6,400 Lb Dyn Cap, 4" Btw Mnt Hole Ctrs, 53/64" Base-to-Ctr Ht, Cast Iron UCF208-24HT - 05600341
Brand: Value Collection- SKU:
- 05600341
- ID:
- 554980
$95.68
Value Collection 1-1/2" ID, 5-1/8" OAW x 5-1/8" OAL x 5-1/8" OAH 4-Bolt High Temperature Flange Bearing 4,000 Lb Static Cap, 6,400 Lb Dyn Cap, 4" Btw Mnt Hole Ctrs, 53/64" Base-to-Ctr Ht, Cast Iron
Manufacturer Part #: UCF208-24HT
S/N: 05600341
UNSPSC: 31171500
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Type | 4 Bolt Flange Bearings High Temperature |
| Outside Diameter (Inch) | 3.150 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 3.1496 |
| Inside Diameter (Inch) | 1-1/2 |
| Outside Diameter (mm) | 80.0000 |
| Bolt Size (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 5.1250 |
| Overall Length (Inch) | 5-1/8 |
| Overall Length (mm) | 130.1750 |
| Overall Height (Inch) | 5-1/8 |
| Overall Height (Decimal Inch) | 5.1250 |
| Overall Width (Inch) | 5-1/8 |
| Overall Height (Mm - 5 Decimals) | 130.17500 |
| Static Load Capacity | 4000.0 |
| Dynamic Load Capacity (Lb.) | 6400 |
| Distance Between Base And Center (Decimal Inch) | 0.8281 |
| Distance Between Base And Center (Inch) | 53/64 |
| UNSPSC Code | 31171500 |
| Maximum Bore Diameter (mm) | 38.1305 |
| Depth (Inch) | 2-1/32 |
| Maximum Bore Diameter (Inch) | 1-1/2 |
| Width (Decimal Inch - 4 Decimals) | 1.9370 |
| Width (mm - 2 Decimals) | 49.20 |
