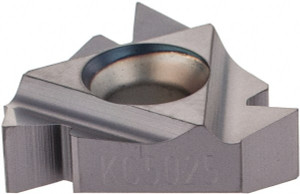

Kennametal LT16NR8NPT KC5025 Carbide Laydown Threading Insert TiAlN Finish, RH Internal NPT Thread, 8 TPI, 3/8" Inscribed Circle, 3.44mm Thick 1743972 - 05750476

Kennametal LT16NR8NPT KC5025 Carbide Laydown Threading Insert TiAlN Finish, RH Internal NPT Thread, 8 TPI, 3/8" Inscribed Circle, 3.44mm Thick 1743972 - 05750476

Brand:   Kennametal
SKU:
05750476
ID:
665259
UPC:
662497165718
callling
$53.25
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal LT16NR8NPT KC5025 Carbide Laydown Threading Insert TiAlN Finish, RH Internal NPT Thread, 8 TPI, 3/8" Inscribed Circle, 3.44mm Thick

Manufacturer Part #: 1743972

S/N: 05750476

UNSPSC: 23291804

UPC: 662497165718

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style16NR
Insert MaterialSolid Carbide
Manufacturer GradeKC5025
Material GradeC2, C6
Threads Per Inch8
Thread TypeInternal
Thread StandardNPT
Insert HandRight Hand
Thickness (mm)3.44
Coating ProcessPVD
Inscribed Circle (mm)9.53
Inscribed Circle (Decimal Inch)0.3750
Inscribed Circle (Inch)3/8
Hole Diameter (Mm) ( - 0 Decimals)3.94
Hole Diameter (Decimal Inch)0.1551
Coating ClassificationKenna Perfect
Thickness (Decimal Inch - 4 Decimals)0.1430
Coating/FinishTiAlN
