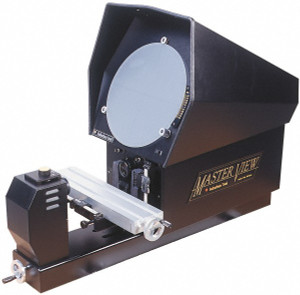

Suburban Tool Optical Comparator: 14" Screen Dia, Horizontal Orientation, 10x Magnification 4" Y-Axis Travel, 8" X-Axis Travel, 0.0005" Resolution MV14 - 06556104
Brand: Suburban Tool Inc.-Taft Peirce Metrology- SKU:
- 06556104
- ID:
- 853109
$12,744.44
Suburban Tool Optical Comparator: 14" Screen Dia, Horizontal Orientation, 10x Magnification 4" Y-Axis Travel, 8" X-Axis Travel, 0.0005" Resolution
Manufacturer Part #: MV14
S/N: 06556104
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Orientation | Horizontal |
| Magnification | 10x |
| Screen Diameter (Inch) | 14 |
| Y-Axis Stage Travel Range (Inch) | 4 |
| Resolution (Decimal Inch) | 0.000500 |
| Stage Length (Inch) | 19.0000 |
| Stage Width (Fractional Inch) | 4-1/2 |
| Light Source | Tungsten-Halogen |
| Lens Included | Yes |
| Overall Height (Inch) | 34.0000 |
| Overall Width (Inch) | 22-1/2 |
| Overall Length (Inch) | 48-1/2 |
| X Axis Stage Travel Range (Decimal Inch) | 8.0000 |
