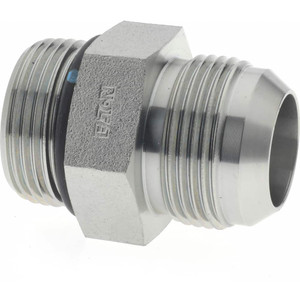

Eaton 1" Tube OD x 1" ORB 37° Steel Flared Tube Straight Thread Connector Flared to Male SAE O-Ring Ends 202702-16-16S - 06682082
Brand: Eaton- SKU:
- 06682082
- ID:
- 536633
$21.68
Eaton 1" Tube OD x 1" ORB 37° Steel Flared Tube Straight Thread Connector Flared to Male SAE O-Ring Ends
Manufacturer Part #: 202702-16-16S
S/N: 06682082
UNSPSC: 27121707
UPC: 678146048165
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Flared Angle | 37 |
| Material | Steel |
| Thread Standard | ORB |
| End Connection | Flared to Male SAE O-Ring |
| Minimum Working Temperature (Deg F) | -40 |
| Maximum Working Temperature (F) | 250 |
| Maximum Working Pressure (Psi - 3 Decimals) | 6000 |
| Standards | SAE 070120 |
| Outside Diameter (Inch) | 1 |
| Inside Diameter (Decimal Inch) | 0.8400 |
| Overall Length (Decimal Inch) | 2.0400 |
| Overall Length (mm) | 51.80 |
| UNSPSC Code | 27121707 |
