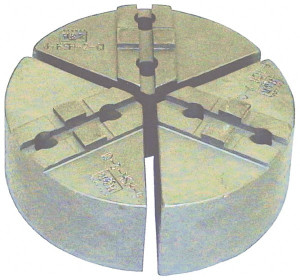

H&R Mfg. 6" Chuck Capacity, Tongue & Groove Attachment, Round Soft Lathe Chuck Jaw 3 Jaws, Cast Iron, 1-1/2" Btw Mount Hole Ctrs, 3" Long x 6" Wide x 2" High, 5/16" Groove HR-6MSH-2-CI - 06828966
Brand: H&R Manufacturing and Supply, Inc.- SKU:
- 06828966
- ID:
- 450159
$334.14
H&R Mfg and Supply 6" Chuck Capacity, Tongue & Groove Attachment, Round Soft Lathe Chuck Jaw 3 Jaws, Cast Iron, 1-1/2" Btw Mount Hole Ctrs, 3" Long x 6" Wide x 2" High, 5/16" Groove
Manufacturer Part #: HR-6MSH-2-CI
S/N: 06828966
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Jaw Shape | Round |
| Jaw Interface Type | Tongue & Groove |
| Material | Cast Iron |
| Maximum Compatible Chuck Diameter (mm) | 6.00 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 6.0000 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 6.0000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.5000 |
| Slot Width (Decimal Inch) | 0.5000 |
| Groove Width (Decimal Inch) | 0.3130 |
| Overall Height (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Width/Diameter (Decimal Inch) | 6.0000 |
| Overall Width/Diameter (Inch) | 6 |
| Number Of Jaws | 3 |
