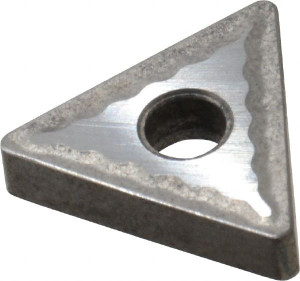

Value Collection TNMG322R ICP22 Carbide Turning Insert Al2O3 Finish, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle, Series KENLOC 41000 - 07181761
Brand: Value Collection- SKU:
- 07181761
- ID:
- 678223
$9.92
Value Collection TNMG322R ICP22 Carbide Turning Insert Al2O3 Finish, 3/8" Inscribed Circle, 1/32" Corner Radius, 60° Triangle, Series KENLOC
Manufacturer Part #: 41000
S/N: 07181761
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | TNMG322 |
| ISO Insert Code | TNMG160308 |
| Relief Angle | 0 |
| Insert Style | TNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 60 |
| Manufacturer Grade | ICP22 |
| Coating/Finish | Al2O3 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Side Clearance | Negative |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | K, N |
| Material Grade | C2 |
| Chip Breaker | G |
| ANSI Size Code | 322 |
| ISO Size Code | 160308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 322 |
