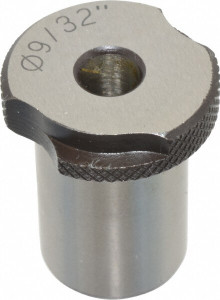

Boneham Type SF, 9/32" Inside Diam, Head, Slip Fixed Drill Bushing 3/4" Body Outside Diam, 1" Length Under Head, Steel, LS-1 Compatible

Manufacturer Part #: SF4816HX

S/N: 07418767

UNSPSC: 31171603

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Installation MethodSlip-Fixed
Bushing Industry CodeSF
Inside Diameter (Inch)9/32
Body Outside Diameter (Inch)3/4
Body Outside Diameter (Decimal Inch)0.7500
Length Under Head (Inch)1
Head or HeadlessHead
Bushing MaterialSteel
Head Outside Diameter (Inch)1-3/64
Head Height (Inch)1/4
Renewable BushingYes
Hardness60 to 65 HRC
Inside Diameter Tolerance+0.0001 to +0.0005 in
CounterboredNo
Lock Screw CompatibilityLS-1
StandardsANSI
