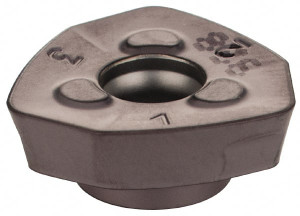

Iscar FF WOMT 09T320T IC928 Carbide Milling Insert TiAlN Finish, 0.4173" Long x 0.1575" Thick 5603325 - 07629132
Brand: Iscar- SKU:
- 07629132
- ID:
- 660050
$27.85
Iscar FF WOMT 09T320T IC928 Carbide Milling Insert TiAlN Finish, 0.4173" Long x 0.1575" Thick
Manufacturer Part #: 5603325
S/N: 07629132
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | WOMT |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1560 |
| Coating/Finish | TiAlN |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Size Code | 09T320 |
| Material Grade | C1, C2, C5, C6 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.5709 |
| Inscribed Circle (mm) | 18.00 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | FEEDMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4173 |
| Rake | Positive |
| Primary Workpiece Material | Steel, Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, S |
| Secondary Workpiece Material Code | S |
| Ansi Code | FF WOMT 09T320T IC928 |
| Iso Code | FF WOMT 09T320T |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | High Feed Rate |
| Manufacturers Catalog Number | FF WOMT 09T320T IC928 |
| Cutter Series Compatibility | FF FW, FF EW |
| Chip Breaker | T |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.5709 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5709 |
