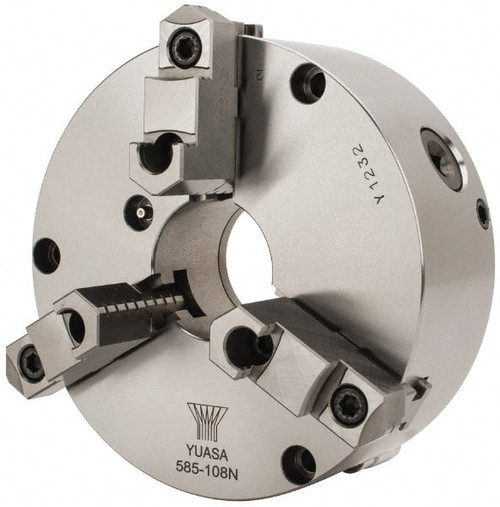

YUASA 3 Jaws, 8" Diam, Self Centering Manual Lathe Chuck Plain Back Mount Spindle, Adjustable, Reversible, 2.4803" Through Hole Diam, 0.0005" Axial Runout, Cast Iron 585108Y - 08558082
Brand: YUASA- SKU:
- 08558082
- ID:
- 451100
$2,118.85
YUASA 3 Jaws, 8" Diam, Self Centering Manual Lathe Chuck Plain Back Mount Spindle, Adjustable, Reversible, 2.4803" Through Hole Diam, 0.0005" Axial Runout, Cast Iron
Manufacturer Part #: 585108Y
S/N: 08558082
UNSPSC: 31380000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Chuck Type | Self-Centering |
| Chuck Diameter (Inch) | 8-1/4 |
| Chuck Diameter (mm) | 209.55 |
| Number Of Jaws | 3 |
| Mount Type | Plain Back |
| Body Material | Cast Iron |
| Adjustable | Yes |
| Reversible Jaws | Reversible |
| Maximum Jaw Capacity (Inch) | 7.2835 |
| Jaw Type | Top |
| Axial Runout (mm) | 0.01 |
| Axial Runout (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 2.9500 |
| Body Length | 74.93 |
| Contents | Top Reversible Jaws |
| Maximum Jaw Capacity (mm) | 185.00 |
| Through-Hole Diameter (mm) | 63.00 |
