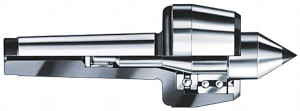

Rohm MT6 Taper Shank, 4.13" Head Diam Carbide Tipped Live Center 2,600 Max RPM, 3.22" Head Length, 1.9685" Point Diam, 2.264" Point Len, 3,960 Lb Max Workpc, 13.15" OAL, Standard Point 221017 - 08623654
Brand: Rohm- SKU:
- 08623654
- ID:
- 449586
$3,651.58
Rohm MT6 Taper Shank, 4.13" Head Diam Carbide Tipped Live Center 2,600 Max RPM, 3.22" Head Length, 1.9685" Point Diam, 2.264" Point Len, 3,960 Lb Max Workpc, 13.15" OAL, Standard Point
Manufacturer Part #: 221017
S/N: 08623654
UNSPSC: 23153103
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Shank Type | Taper |
| Bearing Type | Triple |
| Material | Steel |
| Taper Size | MT6 |
| Maximum Workpiece Weight (Lb.) | 3960.00 |
| Maximum Workpiece Weight (kg) | 1800.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 1.9685 |
| Point Diameter (mm) | 50.00 |
| Point Length (Decimal Inch) | 2.2640 |
| Point Length (mm) | 57.50 |
| Accuracy | 0.01mm |
| Head Diameter (Decimal Inch) | 4.1300 |
| Shank Diameter (Inch) | 2-1/2 |
| Head Length (Decimal Inch) | 3.2200 |
| Overall Length (Decimal Inch) | 13.1500 |
| Point to Gauge Line (mm) | 152.00 |
| Included Angle | 60 |
| Maximum RPM | 2600 |
| Carbide-tipped Point | Yes |
| Gage Line Diameter (mm) | 63.35 |
