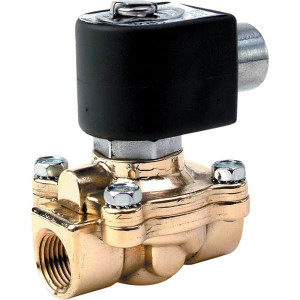

Parker Hannifin 120/60 - 110/50 VAC 1/2" NPT Port Brass Two-Way Internally Piloted Diaphragm Solenoid Valve Normally Closed, 200 Max psi 08624546 - 08624546

Parker Hannifin 120/60 - 110/50 VAC 1/2" NPT Port Brass Two-Way Internally Piloted Diaphragm Solenoid Valve Normally Closed, 200 Max psi 08624546 - 08624546

Brand:   Parker Hannifin Corporation
SKU:
08624546
ID:
548138
callling
$340.10
Current Stock:
Adding to cart… The item has been added

Parker Hannifin Corporation

Parker Hannifin 120/60 - 110/50 VAC 1/2" NPT Port Brass Two-Way Internally Piloted Diaphragm Solenoid Valve Normally Closed, 200 Max psi

Manufacturer Part #: 08624546

S/N: 08624546

UNSPSC: 40141605

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Valve TypeTwo-Way, Internally-Piloted, Diaphragm
Port Size1/2 in
Valve Unactuated StateNormally Closed
Thread StandardNPT
Body MaterialBrass
Seal MaterialNBR
Voltage120/60-110/50V AC
Maximum Working Pressure (Psi - 3 Decimals)200
Cv Factor Nc4.0000
Orifice Size5/8
StandardsCSA Certified, NEMA 4X, UL Listed
Cv Rating4.000
Coil IncludedYes
Minimum Working Pressure (psi)5
Special Item InformationComplete Assembly Pressure Vessel & Coil
Maximum Temperature (F) ( - 0 Decimals)180
Minimum Temperature (Deg F - 3 Decimals)0
Maximum Temperature (C)180
UNSPSC Code40141605
