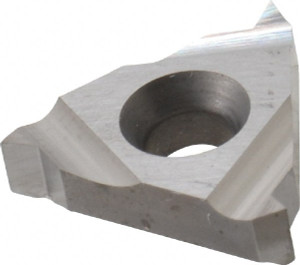

Carmex 16 IR A60 C-5/P-30 Carbide Laydown Threading Insert Uncoated, RH Internal Partial Profile 60° Thread, 48-16 TPI, 3/8" Inscribed Circle, 0.146" Thick 3/8INRHA60P - 08701765

Carmex 16 IR A60 C-5/P-30 Carbide Laydown Threading Insert Uncoated, RH Internal Partial Profile 60° Thread, 48-16 TPI, 3/8" Inscribed Circle, 0.146" Thick 3/8INRHA60P - 08701765

Brand:   Carmex
SKU:
08701765
ID:
664476
callling
$19.80
Current Stock:
Adding to cart… The item has been added

Carmex

Carmex 16 IR A60 C-5/P-30 Carbide Laydown Threading Insert Uncoated, RH Internal Partial Profile 60° Thread, 48-16 TPI, 3/8" Inscribed Circle, 0.146" Thick

Manufacturer Part #: 3/8INRHA60P

S/N: 08701765

UNSPSC: 23291804

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style16IR
Insert Size Code16
Insert MaterialSolid Carbide
Manufacturer GradeP30
Material GradeC5
Threads Per Inch48-16
Thread TypeInternal
Pitch (mm)0.50 to 1.50
Insert HandRight Hand
Included Angle60
Inscribed Circle (Decimal Inch)0.3750
Inscribed Circle (Inch)3/8
Primary Workpiece MaterialUniversal
Primary Workpiece Material CodeH, K, M, N, P, S
StandardsCE, ISO 134852016, ISO 140012015, ISO 45001
MSC/Manufacturer Number16IR A60
Thickness (Decimal Inch - 4 Decimals)0.1460
Coating/FinishUncoated
