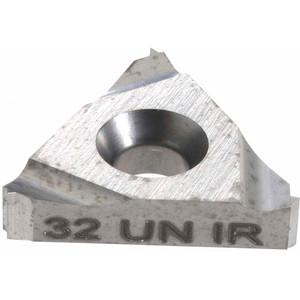

Carmex 16 IR 32UN C-5/P-30 Carbide Laydown Threading Insert Uncoated, RH Internal UN Thread, 32 TPI, 3/8" Inscribed Circle, 0.146" Thick 16IR32UNC-5/P30 - 08704371

Brand: Carmex

SKU:: 08704371

ID:: 664498

$19.73

Current Stock:

Adding to cart… The item has been added

Carmex 16 IR 32UN C-5/P-30 Carbide Laydown Threading Insert Uncoated, RH Internal UN Thread, 32 TPI, 3/8" Inscribed Circle, 0.146" Thick

Manufacturer Part #: 16IR32UNC-5/P30

S/N: 08704371

UNSPSC: 23291804

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style	16IR
Insert Size Code	16
Insert Material	Solid Carbide
Manufacturer Grade	P30
Material Grade	C5
Threads Per Inch	32
Thread Type	Internal
Thread Standard	UN
Insert Hand	Right Hand
Included Angle	60
Inscribed Circle (Decimal Inch)	0.3750
Inscribed Circle (Inch)	3/8
Primary Workpiece Material	Universal
Primary Workpiece Material Code	H, K, M, N, P, S
Standards	CE, ISO 13485	2016, ISO 14001	2015, ISO 45001
Thickness (Decimal Inch - 4 Decimals)	0.1460
Coating/Finish	Uncoated

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
