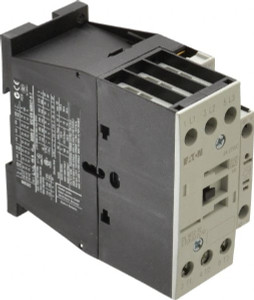

Eaton Cutler-Hammer 3 Pole, 24 to 27 Coil VDC, 40 Amp, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 3 at 115 V, 5 at 200 V, 5 at 230 V, 3 Phase hp: 10 at 200 V, 10 at 230 V, 20 at 460 V, 25 at 575 V XTCE032C10TD - 08804866
Brand: Eaton Cutler-Hammer- SKU:
- 08804866
- ID:
- 587946
$392.26
Eaton Cutler-Hammer 3 Pole, 24 to 27 Coil VDC, 40 Amp, Nonreversible Open Enclosure IEC Contactor 1 Phase hp: 3 at 115 V, 5 at 200 V, 5 at 230 V, 3 Phase hp: 10 at 200 V, 10 at 230 V, 20 at 460 V, 25 at 575 V, 32 Amp Inductive Load Rating Listed
Manufacturer Part #: XTCE032C10TD
S/N: 08804866
UNSPSC: 39121529
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Number Of Poles | 3 |
| Inductive Load Rating | 32.0A |
| Resistive Load Rating (A) | 45 |
| Amperage | 40 |
| Action | Non Reversible |
| Coil Voltage | 24 to 27Vdc |
| Auxiliary Contact Configuration | NO |
| Reversible | No |
| Enclosure Type | Open |
| Overall Height (Mm - 5 Decimals) | 85.00 |
| Overall Height (Decimal Inch) | 3.4600 |
| Overall Width (Decimal Inch - 4 Decimals) | 1.7700 |
| Overall Width (mm) | 45.00 |
| Overall Depth (Decimal Inch) | 5.4600 |
| Overall Depth (Mm) | 138.70 |
| Standards | ATEX, CCC, CE Marked, CSA, EN/IEC 60947, RoHS Compliant, UL |
