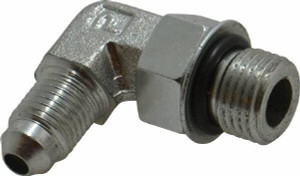

Parker Hannifin 1/4" Tube OD x 9/16" UNF 37° Steel Flared Tube Straight Thread Elbow Flare x SAE-ORB Ends 4-6 C5OX-S - 09105883

Brand: Parker Hannifin Corporation

SKU:: 09105883

ID:: 537165

$26.65

Current Stock:

Adding to cart… The item has been added

Parker Hannifin 1/4" Tube OD x 9/16" UNF 37° Steel Flared Tube Straight Thread Elbow Flare x SAE-ORB Ends

Manufacturer Part #: 4-6 C5OX-S

S/N: 09105883

UNSPSC: 27121707

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Fitting Type	90 Deg Straight Thread Elbow
Flared Angle	37
Material	Steel
Thread Standard	UNF
End Connection	Flare x SAE-ORB
Maximum Working Temperature (F)	500
Standards	ISO 8434-2, SAE 070220, SAE J514
Max Working Pressure Dynamic	6000
Outside Diameter (Inch)	1/4
Maximum Working Temprature (Deg C)	260
UNSPSC Code	27121707

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
