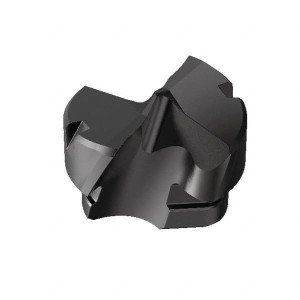

Kennametal KTFSS04375FEG Carbide Replaceable Tip Drill AlTiN Finish, 180° Included Angle, 7/16" Diam, Through Coolant, Series KenTIP FS 6771121 - 10046134
Brand: Kennametal- SKU:
- 10046134
- ID:
- 657502
$162.37
Kennametal KTFSS04375FEG Carbide Replaceable Tip Drill AlTiN Finish, 180° Included Angle, 7/16" Diam, Through Coolant, Series KenTIP FS
Manufacturer Part #: 6771121
S/N: 10046134
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Cutting Diameter (Inch) | 7/16 | ||||
| Cutting Diameter (Decimal Inch) | 0.4375in | ||||
| Tip Material | Solid Carbide | ||||
| Manufacturer Grade | KCP15A | ||||
| Material Grade | Fine Grain | ||||
| Series | KTFSS | ||||
| Coating Process | PVD | ||||
| Insert Geometry | FEG | ||||
| Insert Seat Size | L | ||||
| Functional Length (Decimal Inch) | 0.2188 | ||||
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron | ||||
| Primary Workpiece Material Code | P, M, K | ||||
| Height (mm) | 6.00 | ||||
| Overall Length/Projection (Decimal Inch) | 0.2534 | ||||
| Drill Point Angle | 180 | ||||
| Flute Type | Straight | ||||
| Insert Holding Method | Clamp | ||||
| ISO Number | KTFSS04375FEG | ||||
| Coolant Through | No | ||||
| Flute Length (mm) | 6.00 | ||||
| Point Type | Flat | ||||
| Spiral Type | Straight | ||||
| Style | KTFSS | ||||
| Applications | Drilling, Drilling | InclinedExit, Drilling | FlatBottom, Drilling | InclinedEntry, CounterBoring, 100160772, ToolDimensions | 2flute/4margin/nocool |
| UNSPSC Code | 23242105 | ||||
| Coating/Finish | AlTiN | ||||
| Included Angle Degree | 180 | ||||
| Number Of Flutes | 2 |
