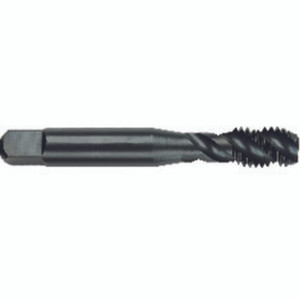

Morse Cutting Tools 60959 Spiral Flute Tap, 3/4" - 10, 4-1/4" OAL, 3 FL, HSS-PM, TiCN, H5, Series 2096C - 1029361
Brand: Morse Cutting Tools- SKU:
- 1029361
- ID:
- 866434
| Thread Diameter Size | 3/4" |
| Threads Per Inch | 10 |
| Thread Standard | NC |
| Thread Cutting Part Length | 13/16" |
| Overall Length | 4-1/4" |
| Thread Tolerance Class | H5 |
| Cutting Edge Material | HSS-PM |
| Chamfer | Semi-Bottoming |
| Flute Count | 3 |
| Flute Helix Angle | 48 Degrees |
| Coating | TiCN |
| Flute Type | Spiral |
| Style | Semi-Bottoming |
$257.68
Morse Cutting Tools Spiral Flute Tap, 3/4" - 10, 4-1/4" OAL, 3 FL, HSS-PM, TiCN, H5, Series 2096C - 1029361
3/4" - 10 NC 3-Flute, H5 Semi-Bottoming Series/List # 2096C Spiral Flute Tap
Manufacturer Part Number: 60959
Trade Name: SINGLE TAP
Country of Manufacture: USA
Specifications:
| SKU | 1029361 |
| Manufacturer Part Number | 60959 |
| Legacy Product Number | MT3360959 |
| HQ Product Code | MRT60959 |
| Series/List # | 2096C |
| Thread Diameter Size | 3/4" |
| Threads per Inch | 10 |
| Thread Standard | NC |
| Thread Cutting Part Length | 13/16" |
| Overall Length | 4-1/4" |
| Applicable Material | Super-Alloys / Titanium |
| Cutting Edge Material | HSS-PM |
| Thread Tolerance Class | H5 |
| Chamfer | Semi-Bottoming |
| Dimension Units | Inch |
| Flute Count | 3 |
| Flute Helix Angle | 48 Degrees |
| Tap Type | High Performance Tap |
| Coating | TiCN |
| Flute Type | Spiral |
| Style | Semi-Bottoming |
| Measurement Type | Inch |
