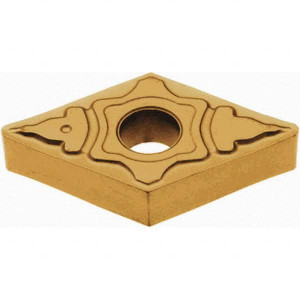

Tungaloy DNMG 431 TS T9215 Carbide Turning Insert TiN/TiCN/Al2O3/TiN Finish, Neutral, 0.61" Long, 1/2" Inscribed Circle, 0.0156" Corner Radius, 3/16" Thick, Diamond 6774113 - 12173886
Brand: Tungaloy- SKU:
- 12173886
- ID:
- 678112
$28.12
Tungaloy DNMG 431 TS T9215 Carbide Turning Insert TiN/TiCN/Al2O3/TiN Finish, Neutral, 0.61" Long, 1/2" Inscribed Circle, 0.0156" Corner Radius, 3/16" Thick, Diamond
Manufacturer Part #: 6774113
S/N: 12173886
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55degree |
| Manufacturer Grade | T9215 |
| Coating/Finish | TiCN, Al2O3, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | DNMG-TS |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | Diamond 55 |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 1/2in |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.2200 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron |
| Primary Workpiece Material Code | P, M, K |
| Iso Code | DNMG 431 TS |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 6774113 |
| Material Grade | P10, P20 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | TS |
| Rake Angle | -10 |
| Cutting Edge Style | Honed |
| Industry Standard Number | DNMG 431 TS |
| Width (Decimal Inch - 4 Decimals) | 0.5000in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring, Back Turning, Back Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
