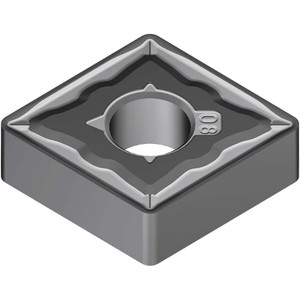

Sumitomo CNMG433EEM AC6020M Carbide Turning Insert Absotech Platinum Finish, Neutral, 1/2" Inscribed Circle, 3/64" Corner Radius, 80° Diamond 19R5CNC - 12902748
Brand: Sumitomo- SKU:
- 12902748
- ID:
- 677066
$15.67
Sumitomo CNMG433EEM AC6020M Carbide Turning Insert Absotech Platinum Finish, Neutral, 1/2" Inscribed Circle, 3/64" Corner Radius, 80° Diamond
Manufacturer Part #: 19R5CNC
S/N: 12902748
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Inch) | 3/64 |
| Included Angle | 80.0 |
| Manufacturer Grade | AC6020M |
| Coating/Finish | Absotech Platinum |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | CN |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Insert Holding Method | Pin, Screw |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5079 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Ansi Code | CNMG433EEM |
| Iso Code | CNMG120412N-EM |
| Standards | ANSI, ISO 13399 |
| Manufacturers Catalog Number | CNMG433EEM-AC6020M |
| Cutting Direction | Neutral |
| Material Grade | M20 |
| Proprietary Coating Designation | Absotech Platinum |
| Chip Breaker | EEM |
| Rake Angle | 0 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Insert Size Code | 433 |
