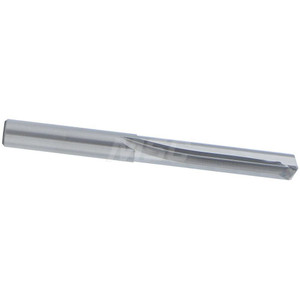

Hertel Straight-Flute & Die Drill Bits, Drill Bit Type: Straight-Flute Drill Bit, Drill Point Angle: 140, Drill Bit Size (Letter): C, Drill Bit Size (Decimal): 0.2420, Solid Carbide, Overall Length (Inch): 2-1/2 CBDD-158 - 16691677
Brand: Hertel- SKU:
- 16691677
- ID:
- 743059
$22.59
Hertel Straight-Flute & Die Drill Bits, Drill Bit Type: Straight-Flute Drill Bit, Drill Point Angle: 140, Drill Bit Size (Letter): C, Drill Bit Size (Decimal): 0.2420, Drill Bit Material: Solid Carbide, Overall Length (Decimal Inch): 2-1/2
Manufacturer Part #: CBDD-158
S/N: 16691677
UNSPSC: 23241600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Letter) | C |
| Tool Material | Carbide |
| Coating/Finish | Bright/Uncoated |
| Flute Length (Inch) | 1-3/8 |
| Flute Length (Decimal Inch) | 1.3750 |
| Drill Point Angle | 140 |
| Overall Length (Inch) | 2-1/2 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.2420 |
| Material Grade | C2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Series | 470 |
| Number Of Flutes | 2 |
| Point Type | Notched |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Primary Workpiece Material | Chrome Alloy, Heat-Treated Alloy, Nickel Alloy, Stainless Steel, Steel, Titanium Alloy |
| Secondary Workpiece Material | Chrome Alloy, Heat-Treated Alloy, Nickel Alloy, Stainless Steel, Steel, Titanium Alloy |
| Maximum Drilling Depth (Decimal Inch) | 2.5000 |
| UNSPSC Code | 23241600 |
