Roper Whitney Bench Slip Roll Machine No. 390 - 167070390
Brand: Roper Whitney- SKU:
- 167070390
- ID:
- 93219
| Max Capacity, Mild Steel | 16 ga. / 18 ga. |
| Max Forming Length | 36" / 915mm |
| Roll Diameter | 2.5" / 64mm |
| Shipping Weight | 457 lbs. |
$0.00

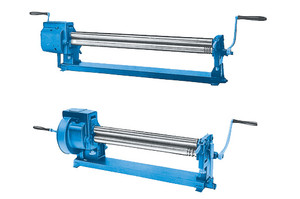

Roper Whitney Bench Slip Roll Machine No. 390
PEXTO 2-1/2 Inch Rolls - No. 390
Arranged for two-handle operation through back geared drive for heavy duty work. For light work back gearing may be disengaged for single crank direct drive. All gears fully enclosed. The machine comes standard with third roll drive.
Wiring grooves in bottom and rear rolls…1/4, 9/32, 5/16, 3/8
| Specifications | No. 390 |
| Maximum Capacity, Mild Steel | 16ga / 1.60mm 18ga / 1.25mm |
| Maximum Forming Length | 36in. / 915mm |
| Roll Diameter | 2.5in / 64mm |
| Minimum Forming Radius | 1.25in. / 32mm |
| Gearing Ratio | 2. 4:1 |
| Wiring Grooves | 1/4, 9/32, 5/16, 3/8, 6.5, 7.15, 8, 9.5mm |
| Shipping Weight | 457lbs. / 208kg |
| Ordering Guide | Item Number | Shipping Weight |
| No. 390 Pexto Slip Roll Floor mount stand | 167070390 239006008 | 457lbs. / 208kg 180lbs. / 82kg |
| Reference | No. 390 |
| Height | 17in. / 43cm |
| Width | 62in. / 157cm |
| Depth | 18in. / 46cm |
