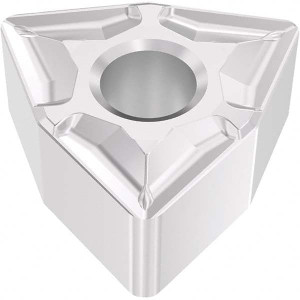

Seco Tools WNMG433-M3 TM3501 Carbide Turning Insert TiCN/Al2O3 Finish, Neutral, 0.3307" Long, 1/2" Inscribed Circle, 3/64" Corner Radius, 80° Trigon 03280035 - 18614461
Brand: Seco Tools- SKU:
- 18614461
- ID:
- 676965
$27.43
Seco Tools WNMG433-M3 TM3501 Carbide Turning Insert TiCN/Al2O3 Finish, Neutral, 0.3307" Long, 1/2" Inscribed Circle, 3/64" Corner Radius, 80° Trigon
Manufacturer Part #: 03280035
S/N: 18614461
UNSPSC: 23000000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80degree |
| Manufacturer Grade | TM3501 |
| Coating/Finish | TiCN, Al2O3, Cr |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | WNMG-M3 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2028 |
| Maximum Depth of Cut (Decimal Inch) | 0.3307 |
| Insert Holding Method | Clamp, Pin, Lever Lock |
| Width (Inch) | 1/2in |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6850 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | WNMG080412-M3 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 03280035 |
| Material Grade | M30, M40 |
| Proprietary Coating Designation | Duratomic |
| Lead Angle | 80degree |
| Coating Classification | Duratomic |
| Chip Breaker | M3 |
| Rake Angle | 17 |
| Cutting Edge Style | Chamfered & Honed |
| Industry Standard Number | WNMG433-M3 |
| Width (Decimal Inch - 4 Decimals) | 0.5000in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Boring, Facing, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 433 |
