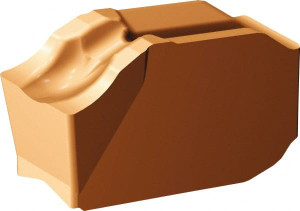

Sandvik Coromant QDNG0300-0002-CM 1125 Carbide Cutoff Insert TiCrAlN/TiAlN Finish, 0° Neutral Lead Angle, Neutral Insert, 3mm Cutting Width, 0.2mm Corner Radius, Series CoroCut QD 6427384 - 30200117
Brand: Sandvik Coromant- SKU:
- 30200117
- ID:
- 647563
$30.25
Sandvik Coromant QDNG0300-0002-CM 1125 Carbide Cutoff Insert TiCrAlN/TiAlN Finish, 0° Neutral Lead Angle, Neutral Insert, 3mm Cutting Width, 0.2mm Corner Radius, Series CoroCut QD
Manufacturer Part #: 6427384
S/N: 30200117
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | QD |
| Insert Size Code | G |
| Insert Material | Carbide |
| Manufacturer Grade | 1125 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Series | CoroCut QD |
| Coating Process | PVD |
| Overall Length (mm) | 10.00 |
| Overall Length (Decimal Inch) | 0.3937 |
| Manufacturers Catalog Number | QD-NG-0300-0002-CM 1125 |
| Insert Seat Size | G |
| Full Radius | No |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1181 |
| Overall Width (mm) | 3.00 |
| Coating/Finish | TiCrAlN, TiAlN |
| UNSPSC Code | 23242105 |
