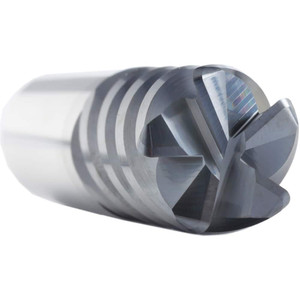

Supermill Corner Radius & Corner Chamfer End Mills, Mill Diameter (Inch): 1/4, Mill Diameter (Decimal Inch): 0.2500, End Type: Corner Radius, Corner Radius (Inch): 0.03, Number of Flutes: 5, Material: Solid Carbide SM5F250A-030 - 33272659
Brand: Supermill- SKU:
- 33272659
- ID:
- 618556
$54.83
Supermill Corner Radius & Corner Chamfer End Mills, Mill Diameter (Inch): 1/4, Mill Diameter (Decimal Inch): 0.2500, End Type: Corner Radius, Corner Radius (Inch): 0.03, Number of Flutes: 5, Material: Solid Carbide
Manufacturer Part #: SM5F250A-030
S/N: 33272659
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1/4in |
| Mill Diameter (Decimal Inch) | 0.2500in |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 3/4in |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2-1/2in |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.5000in |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500in |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4in |
| Primary Workpiece Material | Hard Material, Superalloys & Titanium |
| Primary Workpiece Material Code | H, S |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
| Series | SM5F-NB |
| Material Application | Hard Material, High-Temperature Alloy, Titanium |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | High |
| Manufacturers Catalog Number | SM5F-NB |
