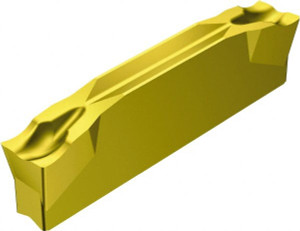

Sandvik Coromant R123G203000502-CM 2135 Carbide Cutoff Insert TiCN/Al2O3/TiN Finish, 5° RH Lead Angle, RH Insert, 3mm Cutting Width, 0.2mm Corner Radius, Series CoroCut 1-2 5741474 - 33929548
Brand: Sandvik Coromant- SKU:
- 33929548
- ID:
- 647603
$52.53
Sandvik Coromant R123G203000502-CM 2135 Carbide Cutoff Insert TiCN/Al2O3/TiN Finish, 5° RH Lead Angle, RH Insert, 3mm Cutting Width, 0.2mm Corner Radius, Series CoroCut 1-2
Manufacturer Part #: 5741474
S/N: 33929548
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | R123x2 |
| Insert Size Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 2135 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 5 |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Series | CoroCut 1-2 |
| Coating Process | MTCVD |
| Overall Length (mm) | 19.56 |
| Overall Length (Decimal Inch) | 0.7701 |
| Manufacturers Catalog Number | R123G2-0300-0502-CM 2135 |
| Maximum Depth of Cut (mm) | 18.80 |
| Insert Seat Size | G |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.7402 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1181 |
| Overall Width (mm) | 3.00 |
| Coating/Finish | TiCN/Al2O3/TiN |
| UNSPSC Code | 23242105 |
