Made in USA 5/16" ID, 7/8" Max OD, 2,796 Lb Max Static Cap, Male Spherical Rod End with Stud 5/16-24 RH, Steel with Bronze Raceway M5SBY - 35398072

Made in USA 5/16" ID, 7/8" Max OD, 2,796 Lb Max Static Cap, Male Spherical Rod End with Stud 5/16-24 RH, Steel with Bronze Raceway M5SBY - 35398072

Brand:   Made in USA
SKU:
35398072
ID:
580116
callling
$12.30
Current Stock:
Adding to cart… The item has been added

Made in USA

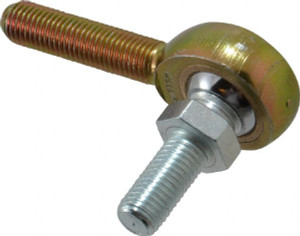

Made in USA 5/16" ID, 7/8" Max OD, 2,796 Lb Max Static Cap, Male Spherical Rod End with Stud 5/16-24 RH, Steel with Bronze Raceway

Manufacturer Part #: M5SBY

S/N: 35398072

UNSPSC: 31171508

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Rod End TypeBall Joint Linkage
StyleMale Rod End with Stud
Maximum Outside Diameter (Inch)7/8
Maximum Static Load Capacity2796
Width (Inch)7/16
Thread Size5/16-24
Shank Length (Inch)1-1/4
Shank Length (Decimal Inch)1.2500
Housing MaterialCarbon Steel
GenderMale
With StudYes
Thread DirectionRight Hand
Bore Diameter (Inch)5/16
Bore Diameter (Decimal Inch)0.3125
Static Load Capacity2796
Raceway MaterialBronze
Ball MaterialSteel
Maximum Ball Swivel14degree
Thread Length (Decimal Inch)1.2500
Thread Length (Inch)1-1/4
Lubricant TypeOil
Coating/FinishZinc-Plated
