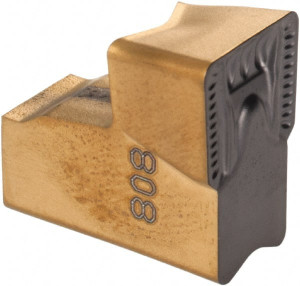

Iscar TAGB808Y IC808 Carbide Cutoff Insert TiN/TiAlN Finish, Neutral Lead Angle, Neutral Insert, 8mm Cutting Width, Series Sumo-Grip 6404053 - 35477041
Brand: Iscar- SKU:
- 35477041
- ID:
- 646758
$36.04
Iscar TAGB808Y IC808 Carbide Cutoff Insert TiN/TiAlN Finish, Neutral Lead Angle, Neutral Insert, 8mm Cutting Width, Series Sumo-Grip
Manufacturer Part #: 6404053
S/N: 35477041
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | TAGB |
| Insert Size Code | 808 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC808 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Cutting Width (mm) | 8.00 |
| Insert Holding Method | Self Grip |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7.00 |
| Chipbreaker | Y |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving, Parting, Turning |
| Series | Sumo-Grip |
| Coating Process | PVD |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | TAGB 808Y |
| Maximum Depth of Cut (mm) | 5.59 |
| Material Grade | Submicron |
| Full Radius | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2200 |
| Coating/Finish | TiN, TiAlN |
| Single Or Double End | Single |
