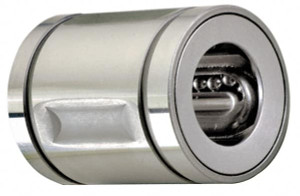

Thomson Industries 5/8" Inside Diam, 150 Lbs. Dynamic Capacity, Open Linear Bearing OPN101824 - 35528405
Brand: Thomson Industries- SKU:
- 35528405
- ID:
- 571373
$68.22
Thomson Industries 5/8" Inside Diam, 150 Lbs. Dynamic Capacity, Open Linear Bearing
Manufacturer Part #: OPN101824
S/N: 35528405
UNSPSC: 31171506
UPC: 662486100850
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Bearing Type | Ball Bushing |
| Bearing Style | Open |
| Inside Diameter (Decimal Inch) | 0.6250 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.1250 |
| Outside Diameter (Inch) | 1-1/8 |
| Outside Diameter (mm) | 28.57 |
| Bore Diameter (mm) | 15.87 |
| Bore Diameter (Decimal Inch) | 0.6250 |
| Dynamic Load Capacity (Lb.) | 150 |
| Material | Steel |
| Bore Type | Round |
| Alignment Style | Fixed |
| Open Number of Ball Circuits. | 3 |
| Closed Dynamic Load Capacity | 150 |
| Overall Length (Decimal Inch) | 1.4850 |
| Open Dynamic Load Capacity (Lb.) | 105 |
| Minimum Slot Width | 0.3800 |
| Closed Number of Ball Circuits | 4 |
| Distance Between Retain Ring Grooves | 1.108 |
| 1.092 | |
| Retain Ring Groove Minimum | 0.0560 |
| Nominal Size (Decimal Inch) | 1.5000 |
