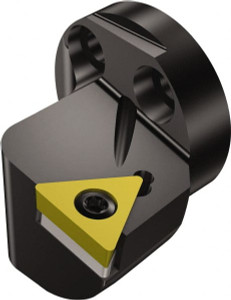

Sandvik Coromant Size 40 32mm Internal or External Right Hand Modular Turning & Profiling Cutting Unit Head 27mm Ctr to Cutting Edge, Uses TCMT 16T308 Inserts, Through Coolant 5764429 - 36008217
Brand: Sandvik Coromant- SKU:
- 36008217
- ID:
- 687619
$736.37
Sandvik Coromant Size 40 32mm Internal or External Right Hand Modular Turning & Profiling Cutting Unit Head 27mm Ctr to Cutting Edge, Uses TCMT 16T308 Inserts, Through Coolant
Manufacturer Part #: 5764429
S/N: 36008217
UNSPSC: 23242100
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| System Size | 40 |
| Cutting Direction | Right Hand |
| Compatible Insert Style | TCMT 16T308 |
| Internal or External | Internal or External |
| Insert Holding Method | Clamp, Screw |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Series | CoroTurn 107 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Axial Rake Angle | 0.00 |
| Radial Rake Angle (Degrees) | -8 |
| Complete Insert Compatibility | TCMT 16T308 |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 1.2598 |
| Head Length Projection (mm) | 32.00 |
| Maximum Hole Depth (Decimal Inch) | 1.2598 |
| Maximum Hole Depth (mm) | 32.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Minimum Hole Diameter (mm) | 50.00 |
| UNSPSC Code | 23242100 |
