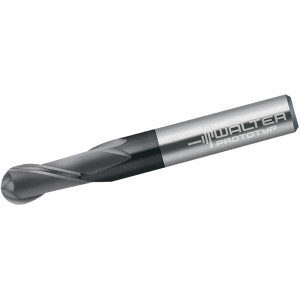

Walter Prototyp 1/4" Diam, 6.35mm LOC, 2 Flute Solid Carbide Ball End Mill TiAlN Finish, Single End, 63.5mm OAL, 1/4" Shank Diam, Spiral Flute 5543782 - 36213791
Brand: Walter Prototyp- SKU:
- 36213791
- ID:
- 611526
$122.49
Walter Prototyp 1/4" Diam, 6.35mm LOC, 2 Flute Solid Carbide Ball End Mill TiAlN Finish, Single End, 63.5mm OAL, 1/4" Shank Diam, Spiral Flute
Manufacturer Part #: 5543782
S/N: 36213791
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1/4 |
| Length of Cut (mm) | 6.35 |
| Coating/Finish | TiAlN |
| Shank Diameter (Inch) | 1/4 |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (mm) | 63.50 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.4000 |
| Length Type | Regular |
| Nose Radius (Decimal Inch) | 0.1250 |
| Mill Diameter Tolerance | h7 |
| Shank Diameter Tolerance | h5 |
| Overall Length Tolerance | +2.00 mm |
| Material Grade | A0706 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| TIR Maximum (mm) | 0.01 |
| Single Or Double End | Single |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
