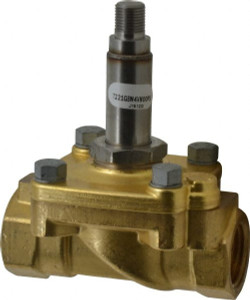

Parker Hannifin 1/2" Port Brass Solenoid Valve Closed 7221GBN4VN00 - 36912111
Brand: Parker Hannifin Corporation- SKU:
- 36912111
- ID:
- 548004
$190.53
Parker Hannifin 1/2" Port Brass Solenoid Valve Closed
Manufacturer Part #: 7221GBN4VN00
S/N: 36912111
UNSPSC: 40141605
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Port Size | 1/2 in |
| Valve Unactuated State | Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 12Vdc, 120Vdc, 120/60 to 110/50Vac, 24Vdc, 24/60Vac, 240/60 to 220/50Vac |
| Maximum Working Pressure (Psi - 3 Decimals) | 100 |
| Cv Factor Nc | 4.4000 |
| Overall Height (Decimal Inch) | 3.6600 |
| Overall Length (Decimal Inch) | 2.7600 |
| Orifice Size | 19/32 |
| Standards | CSA Certified, NEMA 4X, UL Listed |
| Cv Rating | 4.400 |
| Coil Included | Yes |
| Special Item Information | Requires Integrated Coil for Complete Valve |
| Minimum Operating Pressure Differential | 0 |
| Maximum Temperature (F) ( - 0 Decimals) | 185 |
| Maximum Temperature (C) | 185 |
