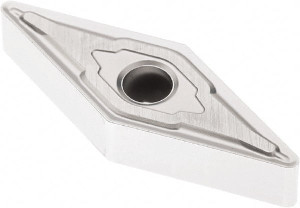

Seco Tools VNMG332-M3 TK1501 Carbide Turning Insert Ti(C/N)/Al2O3/Cr Finish, Neutral, 0.6535" Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 35° Diamond 03062817 - 37816915
Brand: Seco Tools- SKU:
- 37816915
- ID:
- 676221
$45.58
Seco Tools VNMG332-M3 TK1501 Carbide Turning Insert Ti(C/N)/Al2O3/Cr Finish, Neutral, 0.6535" Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 35° Diamond
Manufacturer Part #: 03062817
S/N: 37816915
UNSPSC: 23242105
(Minimum Order Quantity=5)
(Please order in multiples of 5)
Specifications:
| Relief Angle | 0 |
| Insert Style | VNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 35degree |
| Manufacturer Grade | TK1501 |
| Coating/Finish | TiCN, Al2O3, Cr |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | VNMG-M3 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Diamond 35 |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.5748 |
| Insert Holding Method | Clamp, Pin, Lever Lock |
| Width (Inch) | 3/8in |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.3070 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Steel, Stainless Steel |
| Secondary Workpiece Material Code | P, M |
| Iso Code | VNMG160408-M3 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 03062817 |
| Material Grade | K10, K20, K30 |
| Proprietary Coating Designation | Duratomic |
| Lead Angle | 35degree |
| Coating Classification | Duratomic |
| Chip Breaker | M3 |
| Cutting Edge Style | Chamfered & Honed |
| Industry Standard Number | VNMG332-M3 |
| Width (Decimal Inch - 4 Decimals) | 0.3750in |
| Width (mm - 2 Decimals) | 16.60 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Turning, Facing, Profiling, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
