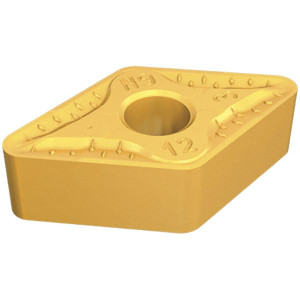

Iscar DNMG433-GN IC830 Carbide Turning Insert TiAlN/AlTiN/TiN Finish, RH, 15.5mm Long, 12.7mm Inscribed Circle, 1.2mm Corner Radius, 4.76mm Thick, 55° Diamond 3308180 - 37961885
Brand: Iscar- SKU:
- 37961885
- ID:
- 670806
$26.69
Iscar DNMG433-GN IC830 Carbide Turning Insert TiAlN/AlTiN/TiN Finish, RH, 15.5mm Long, 12.7mm Inscribed Circle, 1.2mm Corner Radius, 4.76mm Thick, 55° Diamond
Manufacturer Part #: 3308180
S/N: 37961885
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | DNMG |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 55.0 |
| Manufacturer Grade | IC830 |
| Coating/Finish | TiAlN, AlTiN, TiN |
| Insert Hand | Right Hand |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | Isoturn |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | D |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (mm) | 15.50 |
| Insert Length (Decimal Inch) | 0.6100 |
| Primary Workpiece Material | M, P, S |
| Primary Workpiece Material Code | M, P, S |
| Secondary Workpiece Material | None |
| Iso Code | DNMG 433-GN |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | 3308180 |
| Proprietary Coating Designation | SumoTec |
| Chip Breaker | GN |
| Multi-Use Application | Turning |
| Insert Size Code | 433 |
