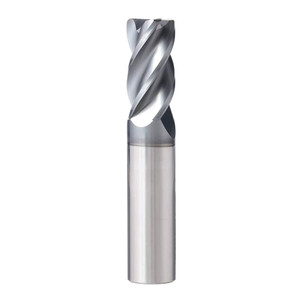

Supermill Corner Radius & Corner Chamfer End Mills, Mill Diameter (Inch): 1/4, Mill Diameter (Decimal Inch): 0.25, End Type: Corner Radius, Number of Flutes: 4, Material: Solid Carbide, Finish/Coating: AlCrN XPVS250-015 - 38989489
Brand: Supermill- SKU:
- 38989489
- ID:
- 618565
$66.95
Supermill Corner Radius & Corner Chamfer End Mills, Mill Diameter (Inch): 1/4, Mill Diameter (Decimal Inch): 0.25, End Type: Corner Radius, Number of Flutes: 4, Material: Solid Carbide, Finish/Coating: AlCrN
Manufacturer Part #: XPVS250-015
S/N: 38989489
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlCrN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron |
| Primary Workpiece Material Code | P, M, K |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
| Series | XPVS |
| Material Application | Steel, Stainless Steel, Cast Iron |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Manufacturers Catalog Number | 42018 |
