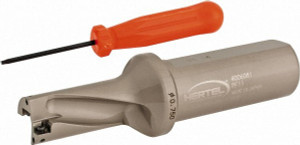

Hertel 1-1/2" Max Drill Depth, 2xD, 3/4" Diam, Indexable Insert Drill Drill Style HID, Takes 2 Inserts, 1" Shank Diam, Straight Shank 4006081 - 39269766
Brand: Hertel- SKU:
- 39269766
- ID:
- 644511
$674.33
Hertel 1-1/2" Max Drill Depth, 2xD, 3/4" Diam, Indexable Insert Drill Drill Style HID, Takes 2 Inserts, 1" Shank Diam, Straight Shank
Manufacturer Part #: 4006081
S/N: 39269766
UNSPSC: 23291503
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Compatible Drill Style | HID |
| Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Diameter (Decimal Inch) | 0.7730 |
| Drill Diameter (Inch) | 3/4 |
| Drill Diameter (mm) | 19.05 |
| Maximum Drill Depth (Inch) | 1-1/2 |
| Maximum Drill Depth (Decimal Inch) | 1.5000 |
| Maximum Drill Depth (mm) | 38.10 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 2xD |
| Flute Length (Decimal Inch) | 1.6180 |
| Flute Length (mm) | 41.10 |
| Body Length | 119.61 |
| Body Length (Decimal Inch) | 4.7090 |
| Shank Length (Decimal Inch) | 2.5000 |
| Shank Length (mm) | 63.50 |
| Insert Compatibility | HPMT063306-GP |
| Collar Diameter (Decimal Inch) | 1.2990 |
| Collar Diameter (mm) | 32.99 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
| Coolant Through | Yes |
