Hertel 2-7/16" Max Drill Depth, 3xD, 13/16" Diam, Indexable Insert Drill Drill Style HID, Takes 2 Inserts, 1" Shank Diam, Straight Shank 4006116 - 39270434
Brand: Hertel- SKU:
- 39270434
- ID:
- 644518
$618.10

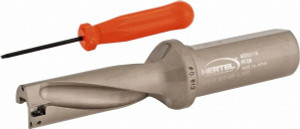

Hertel 2-7/16" Max Drill Depth, 3xD, 13/16" Diam, Indexable Insert Drill Drill Style HID, Takes 2 Inserts, 1" Shank Diam, Straight Shank
Manufacturer Part #: 4006116
S/N: 39270434
UNSPSC: 23291503
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Compatible Drill Style | HID |
| Drill Diameter (Decimal Inch) | 0.8125 |
| Maximum Drill Diameter (Decimal Inch) | 0.8370 |
| Drill Diameter (Inch) | 13/16 |
| Drill Diameter (mm) | 20.64 |
| Maximum Drill Depth (Inch) | 2-7/16 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 2.5560 |
| Flute Length (mm) | 64.92 |
| Body Length | 143.41 |
| Body Length (Decimal Inch) | 5.6460 |
| Shank Length (Decimal Inch) | 2.5000 |
| Shank Length (mm) | 63.50 |
| Insert Compatibility | HPMT063306-GP |
| Collar Diameter (Decimal Inch) | 1.2990 |
| Collar Diameter (mm) | 32.99 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
| Coolant Through | Yes |
