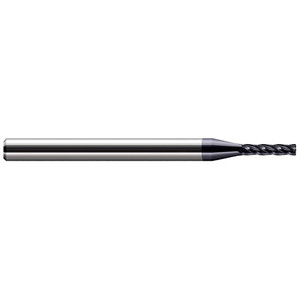

Harvey Tool Corner Radius & Corner Chamfer End Mills, Mill Diameter (Inch): 3/16, Mill Diameter (Decimal Inch): 0.1875, End Type: Corner Radius, Corner Radius (Decimal Inch): 0.0100, Number of Flutes: 4, Material: Solid Carbide 932410-C3 - 39434691
Brand: Harvey Tool- SKU:
- 39434691
- ID:
- 615568
$64.46
Harvey Tool Corner Radius & Corner Chamfer End Mills, Mill Diameter (Inch): 3/16, Mill Diameter (Decimal Inch): 0.1875, End Type: Corner Radius, Corner Radius (Decimal Inch): 0.0100, Number of Flutes: 4, Material: Solid Carbide
Manufacturer Part #: 932410-C3
S/N: 39434691
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Length Type | Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Corner Radius Tolerance | 0.0010 to -0.0010 in |
| Mill Diameter Tolerance | 0.0000 to -0.0020 in |
| Overall Length Tolerance | 0.0100 to -0.0000 in |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Non-ISO |
| Primary Workpiece Material Code | P, M, K, N, O |
| UNSPSC Code | 27112803 |
| Series | Miniature End Mills - Corner Radius - Long Flute, Miniature End Mills |
| Material Application | Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composite |
| Coating Classification | PVD |
| For Use With. | Toolholder |
