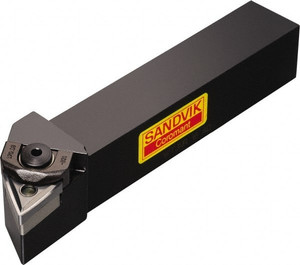

Sandvik Coromant RH WTJN -4° Negative Rake Indexable Turning Toolholder -3° Lead Angle, 1" x 1" Shank, Takes TNMG 22 04 08 Inserts 5757088 - 40173403
Brand: Sandvik Coromant- SKU:
- 40173403
- ID:
- 687253
$258.47
Sandvik Coromant RH WTJN -4° Negative Rake Indexable Turning Toolholder -3° Lead Angle, 1" x 1" Shank, Takes TNMG 22 04 08 Inserts
Manufacturer Part #: 5757088
S/N: 40173403
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Toolholder Style | WTJN |
| Hand of Holder | Right Hand |
| Insert Compatibility | TNMG 22 04 08 |
| Insert Holding Method | Wedge |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Rake | Negative |
| Rake Angle | -4 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | T-Max P |
| Overall Length (Inch) | 6 |
| Head Length (Decimal Inch) | 1.5400 |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
