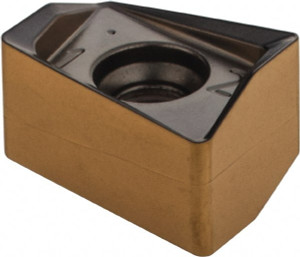

Iscar H490ANKX120508PNTR Carbide Milling Insert TiAlN/TiN Finish, 0.5382" Long x 0.3602" Thick x 0.3937" Wide 5605564 - 40632812

Iscar H490ANKX120508PNTR Carbide Milling Insert TiAlN/TiN Finish, 0.5382" Long x 0.3602" Thick x 0.3937" Wide 5605564 - 40632812

Brand:   Iscar
SKU:
40632812
ID:
660142
callling
$34.90
Current Stock:
Adding to cart… The item has been added

Iscar

Iscar H490ANKX120508PNTR Carbide Milling Insert TiAlN/TiN Finish, 0.5382" Long x 0.3602" Thick x 0.3937" Wide

Manufacturer Part #: 5605564

S/N: 40632812

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleANKX
Insert Size12
Insert MaterialSolid Carbide
Insert ShapeParallelogram
Manufacturer GradeIC830
Corner Radius (Decimal Inch)0.0315
Corner Radius (mm)0.80
Number Of Cutting Edges4
Thickness (Decimal Inch - 4 Decimals)0.3600
Coating/FinishAlTiN, TiN
Relief Angle0
Maximum Depth of Cut (Decimal Inch)0.4330
Insert Size Code120508
Inscribed Circle (Decimal Inch)0.3940
Thickness Range (Decimal Inch)0.3500 to 0.5000
Corner Radius (Inch)1/32
Inscribed Circle Range (Decimal Inch)0.3500 to 0.4000
Length Range (Decimal Inch)0.5000 to 0.6000
Insert HandRight Hand
SeriesHELIDO
Coating ProcessPVD
Cutting Edge Effective Length (Decimal Inch)0.4330
RakeNegative
Primary Workpiece MaterialSteel, Stainless Steel, Superalloys & Titanium
Primary Workpiece Material CodeP, M, S
Secondary Workpiece Material CodeS
Ansi CodeH490 ANKX 120508PNTR IC830
Iso CodeH490 ANKX 120508PNTR
StandardsANSI, ISO 13399
Cutting Edge StyleHelical
Manufacturers Catalog NumberH490 ANKX 120508PNTR IC830
Cutter Series CompatibilityH490 ANK12
Chip BreakerPNTR
Material ApplicationSteel, Stainless Steel, Superalloys & Titanium
Insert Holding MethodScrew
Coating ClassificationSumotec PVD
Single or Double Sided InsertDouble
Included Angle Degree85
Width (Decimal Inch - 4 Decimals)0.3940
Multi-Use ToolYes
Length (Decimal Inch - 4 Decimals)0.5382
