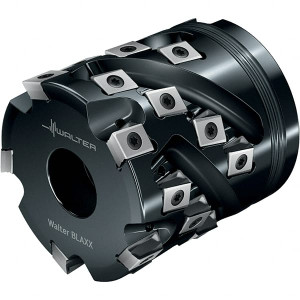

Walter Tools 2-1/2" Cut Diam, 1" Arbor Hole Diam, 1.772" Max Depth, Indexable Square-Shoulder Face Mill Takes 12 Inserts, 90° Lead Angle, 2.756" High, LN 1306 Insert Style, Through Coolant 6365080 - 42072041
Brand: Walter Tools- SKU:
- 42072041
- ID:
- 680931
$2,048.02
Walter Tools 2-1/2" Cut Diam, 1" Arbor Hole Diam, 1.772" Max Depth, Indexable Square-Shoulder Face Mill Takes 12 Inserts, 90° Lead Angle, 2.756" High, LN 1306 Insert Style, Through Coolant
Manufacturer Part #: 6365080
S/N: 42072041
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 1.7720 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | LN 1306 |
| Cutter Style | F5138 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp, Screw |
| Lead Angle | 90 |
| Series | Blaxx |
| Overall Height (Decimal Inch) | 2.7560 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | K, M, N, P, S |
| Secondary Workpiece Material Code | O |
| Standards | ISO |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | LNHU 130608R-L55T, LNHU 130608R-L85T, LNHU 130612R-L55T, LNHU 130616R-L55T, LNHU 130620R-L55T, LNHU 130625R-L55T, LNHU 130630R-L55T, LNHU 130632R-L55T |
| Manufacturers Catalog Number | F5138.UB26.064.Z04.45 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 4 |
