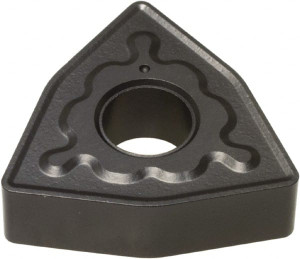

Hertel WNMG 432-L12 HC1250T Carbide Turning Insert Proprietary Finish, Neutral, 12.7mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Trigon 1002249 - 42802777
Brand: Hertel- SKU:
- 42802777
- ID:
- 669700
$28.70
Hertel WNMG 432-L12 HC1250T Carbide Turning Insert Proprietary Finish, Neutral, 12.7mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Trigon
Manufacturer Part #: 1002249
S/N: 42802777
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Included Angle | 80.0 |
| Manufacturer Grade | HC1250T |
| Coating/Finish | Coated |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1900 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2000 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (mm) | 12.70 |
| Insert Length (Decimal Inch) | 0.5000 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Iso Code | WNMG 080408-L12 |
| Manufacturers Catalog Number | WNMG432 |
| Cutting Direction | Neutral |
| Material Grade | HC1250T |
| Single or Multi Tipped | Multi Tipped |
| Chip Breaker | G |
| Rake Angle | 0 |
| Insert Size Code | 432 |
