Hertel WNMG 332-AS HC1250T Carbide Turning Insert Neutral, 9.53mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 80° Trigon 1002283 - 42803163
Brand: Hertel- SKU:
- 42803163
- ID:
- 669709
$22.30

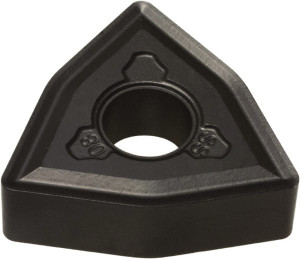

Hertel WNMG 332-AS HC1250T Carbide Turning Insert Neutral, 9.53mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 80° Trigon
Manufacturer Part #: 1002283
S/N: 42803163
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Manufacturer Grade | HC1250T |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Negative |
| Insert Length (mm) | 9.53 |
| Insert Length (Decimal Inch) | 0.3750 |
| Primary Workpiece Material | M |
| Iso Code | WNMG 060408-AS |
| Manufacturers Catalog Number | WNMG332 |
| Cutting Direction | Neutral |
| Material Grade | HC1250T |
| Single or Multi Tipped | Multi Tipped |
| Chip Breaker | G |
| Rake Angle | 10 |
| Insert Size Code | 332 |
